Large Scale Big 10 Inch Softgel Encapsulation Machine For
Pharmaceutical Softgel Capsules
Definition
Softgel gelatin capsules are one piece, hermetically sealed, soft
gelatin shells containing a liquid, a suspension or a semisolid.
Soft gelatin is mainly composed of gelatin, plasticizers,
preservative, colouring and opacifying agents, flavoring agents and
sugars. It is made by softgel encapsulation machine.
Different model for different capacity
| Technical Specification | JLH-250III | JL-250II | JL-150III | JL-100II |
| Output | 88200/h(20#OB; 6rpm) | 58800/h(20#OB; 4rpm) | 17280/h(20#OB; 3rpm) | 8640/h(20#OB; 4rpm) |
| Die Roll Size | Φ150×250mm | Φ150×250mm | Φ150×100mm | Φ80×100mm |
| Die Roll Speed | 0-7rpm | 0-5rpm | 0-4rpm | 0~5rpm |
| Feeding Range | 0-2mL | 0-2mL | 0-2mL | 0-2mL |
| Feeding Variance | ±1.5% | ±1.5% | ±1.5% | ±1.5% |
| Overall Size | 2200*1000*1900 | 2040*960*1900 | 1800*900*1750 | 1440×660×1350 |
| Overall Weight | 1800Kg | 1500Kg | 650Kg | 400 Kg |
| Total Power | 12kw | 10kw | 6kw | 5kw |
| Electrical Power | 380V/220V/480V/110V/240V/208V/400V/415V 50HZ/60HZ 3Phase |
Main structure

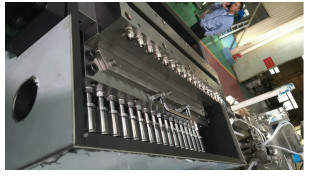

Medicine Pump system:The medicine is pumped from hopper to the
wedge. It is the heart of the softgel machine. It can be design
with different plunger depend on your requirement. 34 plungers is
what we can made before.

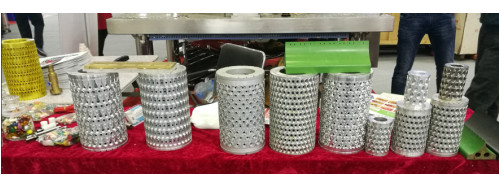

Die roll housing: softgel capsules form based on the die roll type.
The number of pocket of die roll decide the final production
capacity of machine. If you want get good product, you must choose
high quality die roll.

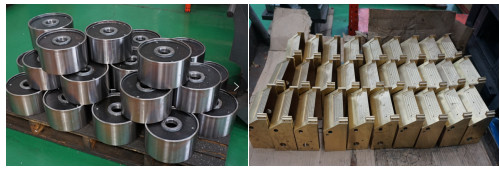

Spreader Box and drum:It is made from brass material. It combined
with drum will lead the gelatin liquid into gelatin ribbon. Drum is
the biggest parts of machine. However, if you want get high quality
gelatin ribbon, you need control the temperature of drum accurately
and precisely.
The other equipment you needed for production.
Gelatin melter: for making gelatin liquid.
Medicine tank: For preparation of medicine or filling material.
Service tank: As transfer tank for encapsulation
Tumble dryer: for softgel capsules shaping, when it is produced
from machine. Or use it to finally dry the capsules
