JL-65II Smallest/table top Softgel gelatin capsule machine
Backgroup
Soft capsules are an important form of drug packaging. Drugs are
often tested in the early stages of development and screening.
Therefore this time needs the small batch soft capsule. In order to
meet many customers for small batch experimental soft capsule
machine requirements, we developed and produced the smallest soft
capsule machine. Or you can call it a desktop lab machine.
Here are his main features
1. The entire model is compact and compact
2. Small size, small footprint, small amount of space required
3. The length, width and height can be adjusted to suit the user's
room
Equipment is designed for easy maintenance
5. The equipment is disassembled and easy to clean
6. The mold is small enough to be specially designed.
7. Touch screen control, simple and convenient
8 with conveyor belt for easy observation of fresh capsules
10 with rotary drying rotary cage. Used for drying and setting of
fresh soft capsules
Below are the main technical parameters, table
| 1. Die roller size | 64x65mm |
| 2. Plunger number | 4 pcs |
| 3. Plunger filling volume | 0-1.5ml |
| 4. Power | 1.5Kw |
| 5. Voltage | 220V 1 phase |
| 6. Weigth | 180kg |
| 7. Size | 1000x600x800mm |
| 8. Packing | Wooden box |
The pictures below are device details

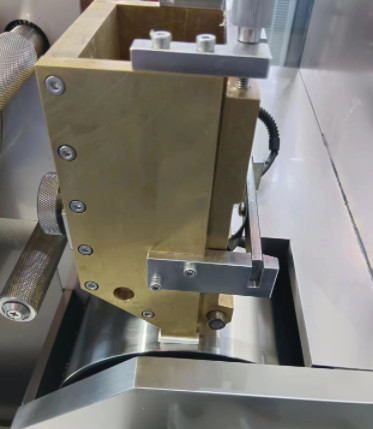

1. Mould part. The die size is 64x65mm. Can be customized according
to customer requirements, design-related soft capsule size.
2. Feed Pump, feed pump with special wear-resistant material.
Suitable for all kinds of soft capsule materials.
3. Cooling hub, hub cooling system is used in the form of water
chillers to provide temperature stability of the cooling water.
Ensure the cooling effect of the wheel hub.
4 fresh soft capsules under the pill chute. Smooth surface, soft
capsules do not stick. Slide down quickly.
5pu sanitary grade conveyor belt. You can see the state of the
fresh capsules on the conveyor belt. Easy to check and test.
6 touch screen to control the main parameters of the soft capsule
machine. Quick and easy. Easy to learn.
